E90AO11-016A16L145Z2R20C

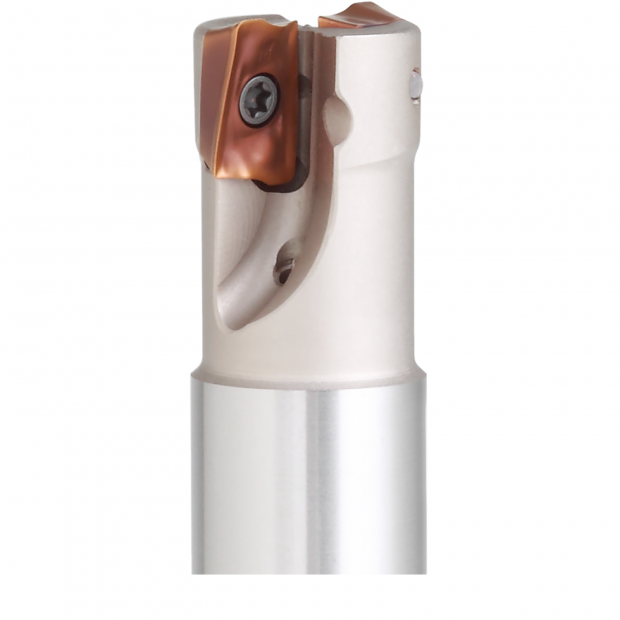

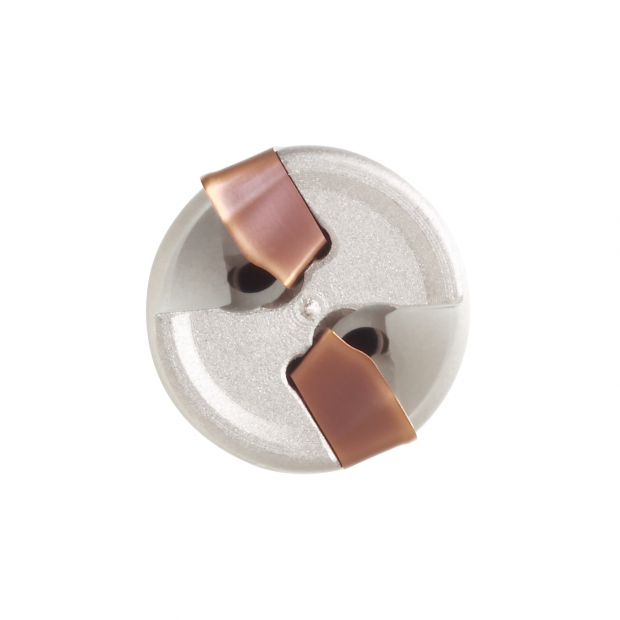

Indexable Milling Cutter Ø0.630 in
USD 249.60 less 50%
USD 124.80
Features
Application
DESCRIPTION | SKU | zc | Dc | Lo | ds | l3 | apmax | RADIUS | CAD MODEL |
---|---|---|---|---|---|---|---|---|---|
E90AO11-016A16... | 1335777 | 2 | 0.63 | 2.874 | 0.63 | 1.89 | 0.413 | 0.031 to 0.079 | Download |
E90AO11-016A16... | 1335793 | 2 | 0.63 | 5.709 | 0.63 | 4.528 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-020A20... | 1335897 | 3 | 0.787 | 3.189 | 0.787 | 2.205 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-020A20... | 1335889 | 2 | 0.787 | 6.693 | 0.787 | 5.512 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-020A20... | 1335913 | 3 | 0.787 | 6.693 | 0.787 | 5.512 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-025A25... | 1336089 | 4 | 0.984 | 3.465 | 0.984 | 2.205 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-025A25... | 1336057 | 2 | 0.984 | 8.268 | 0.984 | 6.693 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-025A25... | 1336105 | 4 | 0.984 | 8.268 | 0.984 | 6.693 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-032A32... | 1336305 | 5 | 1.26 | 3.937 | 1.26 | 2.559 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-032A32... | 1336297 | 3 | 1.26 | 9.252 | 1.26 | 7.283 | 0.413 | 0.031 to 0.079 | n/a |
E90AO11-032A32... | 1336321 | 5 | 1.26 | 9.252 | 1.26 | 7.283 | 0.413 | 0.031 to 0.079 | n/a |
