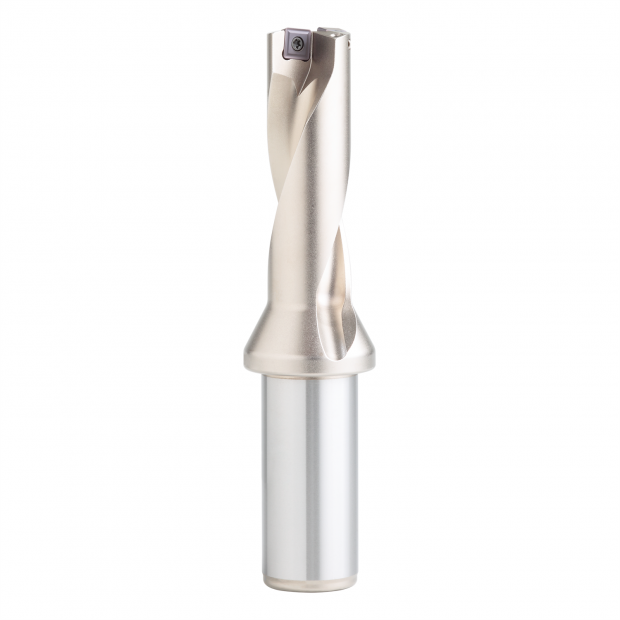

UDS3-22.5-070308
3XD U-drill Ø0.886 in
USD 307.20 less 50%
USD 153.60
Features
Application
DESCRIPTION | SKU | zc | Dc | Lo | l2 | d2 | ds | l3 | CAD MODEL |
---|---|---|---|---|---|---|---|---|---|
UDS3-22-070308 | 1330941 | 1 | 0.866 | 5.669 | 2.598 | 1.339 | 0.984 | 2.205 | n/a |
UDS3-22.5-070308 | 1330943 | 1 | 0.886 | 5.669 | 2.657 | 1.339 | 0.984 | 2.205 | n/a |
UDS3-23-070308 | 1330945 | 1 | 0.906 | 5.787 | 2.717 | 1.339 | 0.984 | 2.205 | n/a |
UDS3-23.5-070308 | 1330947 | 1 | 0.925 | 5.787 | 2.776 | 1.339 | 0.984 | 2.205 | n/a |
UDS3-24-070308 | 1330949 | 1 | 0.945 | 5.906 | 2.835 | 1.339 | 0.984 | 2.205 | n/a |
UDS3-24.5-070308 | 1330951 | 1 | 0.965 | 5.906 | 2.894 | 1.339 | 0.984 | 2.205 | n/a |
UDS3-25-070308 | 1330953 | 1 | 0.984 | 6.024 | 2.953 | 1.339 | 0.984 | 2.205 | n/a |
UDS3-25.5-070308 | 1330955 | 1 | 1.004 | 6.024 | 3.012 | 1.339 | 0.984 | 2.205 | n/a |
UDS3-26-070308 | 1330957 | 1 | 1.024 | 6.496 | 3.071 | 1.732 | 1.26 | 2.362 | n/a |
UDS3-26.5-070308 | 1330959 | 1 | 1.043 | 6.496 | 3.13 | 1.732 | 1.26 | 2.362 | n/a |
UDS3-27-070308 | 1330961 | 1 | 1.063 | 6.614 | 3.189 | 1.732 | 1.26 | 2.362 | n/a |
UDS3-27.5-070308 | 1330963 | 1 | 1.083 | 6.614 | 3.248 | 1.732 | 1.26 | 2.362 | n/a |
