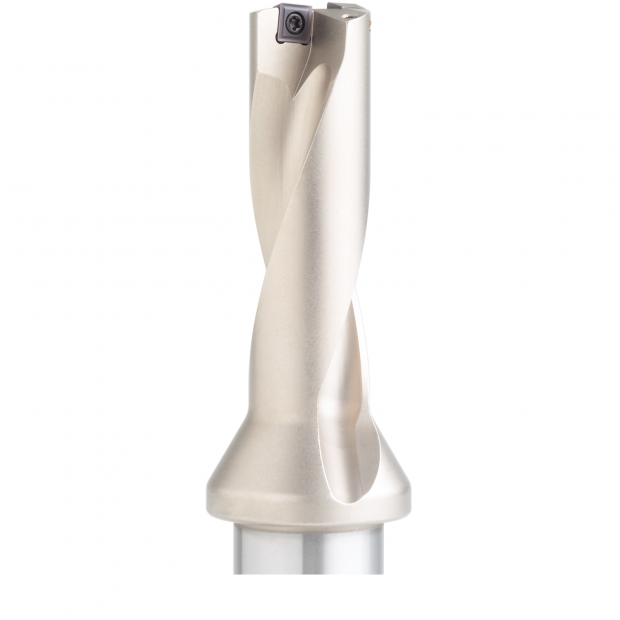

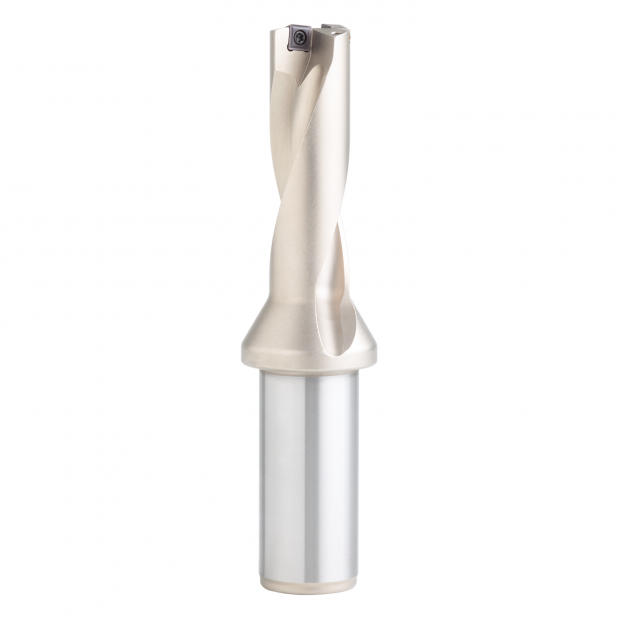

UDS3-21-060304
3XD U-drill Ø0.827 in
USD 307.20 less 50%
USD 153.60
(0)
Features
Application
| DESCRIPTION | SKU | zc | Dc | Lo | l2 | d2 | ds | l3 | CAD MODEL |
|---|---|---|---|---|---|---|---|---|---|
| UDS3-18-060304 | 1330925 | 1 | 0.709 | 5.197 | 2.126 | 1.339 | 0.984 | 2.205 | n/a |
| UDS3-18.5-060304 | 1330927 | 1 | 0.728 | 5.197 | 2.185 | 1.339 | 0.984 | 2.205 | n/a |
| UDS3-19-060304 | 1330929 | 1 | 0.748 | 5.315 | 2.244 | 1.339 | 0.984 | 2.205 | n/a |
| UDS3-19.5-060304 | 1330931 | 1 | 0.768 | 5.315 | 2.303 | 1.339 | 0.984 | 2.205 | n/a |
| UDS3-20-060304 | 1330933 | 1 | 0.787 | 5.433 | 2.362 | 1.339 | 0.984 | 2.205 | n/a |
| UDS3-20.5-060304 | 1330935 | 1 | 0.807 | 5.433 | 2.421 | 1.339 | 0.984 | 2.205 | n/a |
| UDS3-21-060304 | 1330937 | 1 | 0.827 | 5.551 | 2.48 | 1.339 | 0.984 | 2.205 | n/a |
| UDS3-21.5-060304 | 1330939 | 1 | 0.846 | 5.551 | 2.539 | 1.339 | 0.984 | 2.205 | n/a |
