UDS2-28-090308

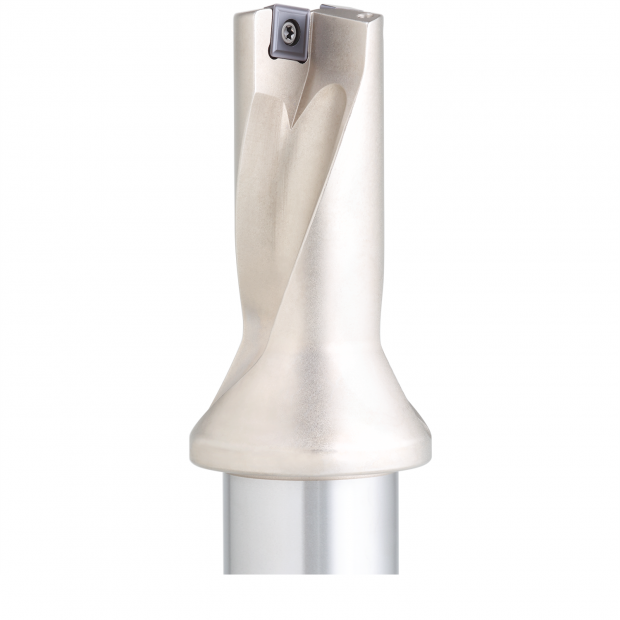

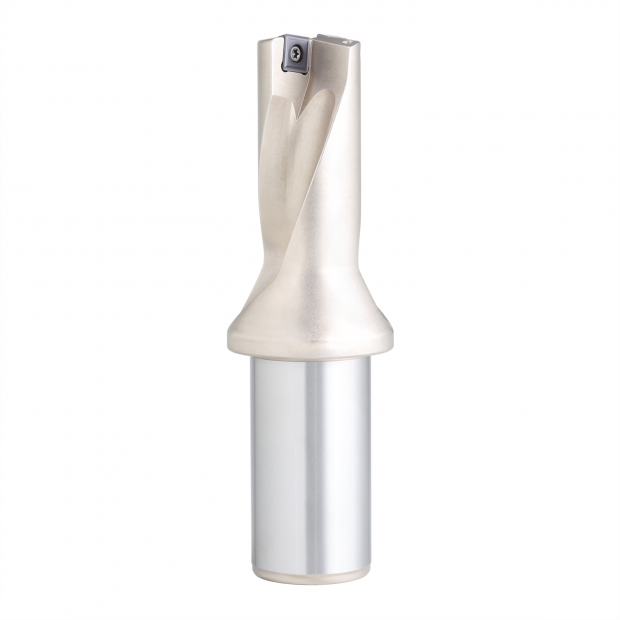

2XD U-drill Ø1.102 in
USD 307.20 less 50%
USD 153.60
(0)
Features
Application
| DESCRIPTION | SKU | zc | Dc | Lo | l2 | d2 | ds | l3 | CAD MODEL |
|---|---|---|---|---|---|---|---|---|---|
| UDS2-28-090308 | 1330765 | 1 | 1.102 | 5.63 | 2.205 | 1.732 | 1.26 | 2.362 | n/a |
| UDS2-29-090308 | 1330769 | 1 | 1.142 | 5.709 | 2.283 | 1.732 | 1.26 | 2.362 | n/a |
| UDS2-30-090308 | 1330773 | 1 | 1.181 | 5.787 | 2.362 | 1.732 | 1.26 | 2.362 | n/a |
| UDS2-31-090308 | 1330777 | 1 | 1.22 | 5.866 | 2.441 | 1.732 | 1.26 | 2.362 | n/a |
| UDS2-32-090308 | 1330781 | 1 | 1.26 | 5.945 | 2.52 | 1.732 | 1.26 | 2.362 | n/a |
| UDS2-33-090308 | 1330785 | 1 | 1.299 | 6.614 | 2.598 | 2.126 | 1.575 | 2.756 | n/a |
